gotgixers '86 GSXR rebuild?modification
« on: January 06, 2011, 11:55:33 pm »
Do you guys want to see the resto/mod i did on my '86? I have lots of pics.
1st pic is the bike as of 5 yrs ago...
2nd pic is bike as of a few months ago after 2 stages of build that took place over 4-5 yrs...with 2yr of ride time in the middle of the 2 stages...

[attachment deleted by admin]
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline SilverZZR

  • www.tnmountaintours.com
  • True Member
  • ****
  • Posts: 931
  • Suzuki FTW!!!
    • Brothers Cabin Staining
Re: gotgixers '86 GSXR rebuild?modification
« Reply #1 on: January 06, 2011, 11:59:07 pm »
post it up  ;D
Dustin
2013 GSX-R1000
ETB Founder

www.tnmountaintours.com

Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #2 on: January 07, 2011, 12:23:19 am »
ok, I will. But not tonight. Too late, too many pics and typing...I have a 54 ft wheelchair to put up in the Am down in Chatt. If they dont cancel due to weather...
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline K5Gixxer

  • Newbie
  • *
  • Posts: 9
Re: gotgixers '86 GSXR rebuild?modification
« Reply #3 on: January 07, 2011, 09:27:05 am »
Always loved the older gixxers lol....very nice man!

Offline 8Ball

  • Mr. Clean
  • True Member
  • ****
  • Posts: 881
Re: gotgixers '86 GSXR rebuild?modification
« Reply #4 on: January 07, 2011, 09:40:09 am »
Sweet.  Lookin' forward to your pics.
Quote from: jeff5150
just follow 129 on the map towards nc til it looks like a kid drawing it had a siezure
Quote from: Tomsljr
Know the difference between crack heads and Gap addicts? I have heard of people quitting crack.

I find a Soap Box comes in handy when getting on and off my High Horse!

Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #5 on: January 07, 2011, 11:42:37 pm »
I will get to it over the weekend...You guys might b surprised what you can turn an old dog into...
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #6 on: January 12, 2011, 12:55:08 am »
well, i just typed for an hour. And this thing lost it all when i tried to post it. I'll try again later, im peeved right now....
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline Curtie223

  • Moderator
  • Legendary Member
  • *****
  • Posts: 7556
Re: gotgixers '86 GSXR rebuild?modification
« Reply #7 on: January 13, 2011, 04:06:44 pm »
I will be looking forward to the build thread :21

 2001 KTM 300exc
 2004 LTZ400



-When you see another rider keep in mind that is another friend you haven't had the chance to meet yet!!
-Riding is about doing what you love! No matter what you ride or how you ride. Just as long as you

Offline Marid2apterbilt

  • 1-SLW-LCL
  • Legendary Member
  • *****
  • Posts: 2806
  • Dumb Mtn Hermit
Re: gotgixers '86 GSXR rebuild?modification
« Reply #8 on: January 13, 2011, 04:27:50 pm »
 :21..
Quote from: Hot Blonde young Waitress
Fine dont eat my CUPCAKES then

Just because your a Touron doesnt mean we Locals should kiss your......

 http://129slayer.com



http://www.easttnbikers.com/forum/

Ha! Not gonna happen.

Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #9 on: January 28, 2011, 11:13:09 pm »
Okay, i started out with a 86 gsxr750. At this point it was all stock down to the pipe. Only the paint was not oem...I had put an additional 27,000mi on it the last 2 yrs it was on the road. That would have been back in '05
Anyways, I started stripping the bike down ...




I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #10 on: January 28, 2011, 11:27:05 pm »
anyways, I decided early on this was going to be a modded-stock look rebuild.Something that could hang with the new liter class bikes, but still look like a stock 86 gsxr 750. So, i stripped it down to a bare frame.And after months of reasearch decided on using an '03 954rr rear shock. That required modding the rear subframe and making a new lower shock linkage to fit the shock in. In that time I had also built an underbraced and 4.5" longer swingarm. I designed a 93-94 WC gsxr rear cailper mount into it also. So- i no longer have an external brake torque arm. I also settled on a n '03 gsxr 750 front fork set. with Race Tech internals. I had the frame, swingarm and all brackets powder coated.





I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #11 on: January 28, 2011, 11:36:37 pm »

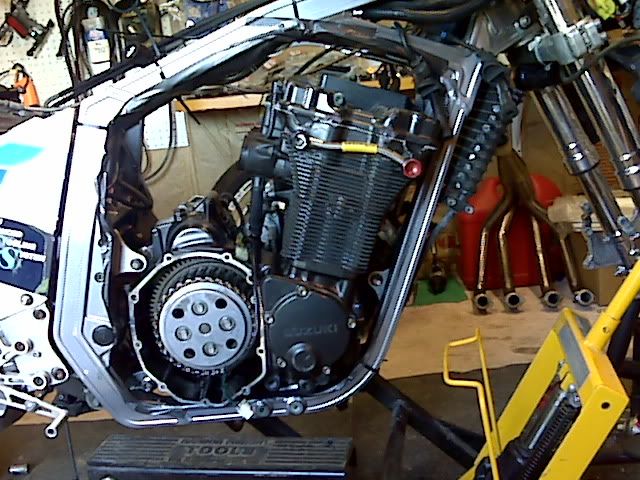

Im using '01 wheels front and rear. '01 1k triples and 6 pot calipers. '06 Busa master cyls and levers.( they look like stock '86's but use newer levers) A modified '01 1k ignition switch and right switch gear. A '01 B-12 left switch gear with thumb choke for my carbs. I run a Veypor VR2 digital dash. Every visible bolt/nut on bike is polished S/S.
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline easyr6

  • Member
  • ***
  • Posts: 146
Re: gotgixers '86 GSXR rebuild?modification
« Reply #12 on: January 28, 2011, 11:48:10 pm »
progress looks good keep it up

Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #13 on: January 28, 2011, 11:53:50 pm »
Then i decide to buy an '04 B-12 engine to see if it will fit in the frame.(1157cc) Figure out if you take the breather off, oil pan and oil pump and pick up it has just enough room to slide in. Then you reassemble it in the frame...but of course I have to punch it out to a 1216 before I install it. Its got the head ported by Dale Walker, it had high lift race cams in it. But I just took them out and stuck a set of stg 1 cams back in it today. I run an '01 B-12 oil cooler along with Dale Walkers Large stepped tube race header and mid, with a hand built Blue Flame EVO dual outlet can. I adapted the '04 B-12 wire harness and CDI box to work in my 86. I use a set of 36mm TPS feedback carbs.The TPS feeds back to the CDI and constantly changes the spark curve for smoother running and better acceleration. It runs better than most EFI bikes...






I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #14 on: January 29, 2011, 12:20:21 am »
I also designed and turned my own Ti steering stem that allowed me to run the '01 triples in my 86 frame with all my 86 bearings and mounting/adjuster hardware. I then decided to use a set of aftermarket Billet rearsets also made to fit an '01 1k.I used these because of ease of availability if broken and looks of course. I made a set of 6061 billet adapter plates to mount them up with.

« Last Edit: January 29, 2011, 12:29:40 am by gotgixers »
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline easyr6

  • Member
  • ***
  • Posts: 146
Re: gotgixers '86 GSXR rebuild?modification
« Reply #15 on: January 29, 2011, 12:29:58 am »
 lookin good

Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #16 on: January 29, 2011, 12:33:21 am »

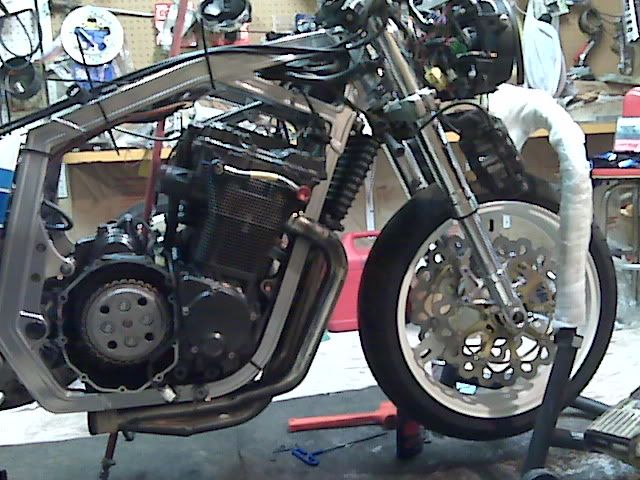

heres a couple pics while in the works....from when the forks were out at Race Tech...


And when I got the wave rotors...finally !!

I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #17 on: January 29, 2011, 12:44:27 am »

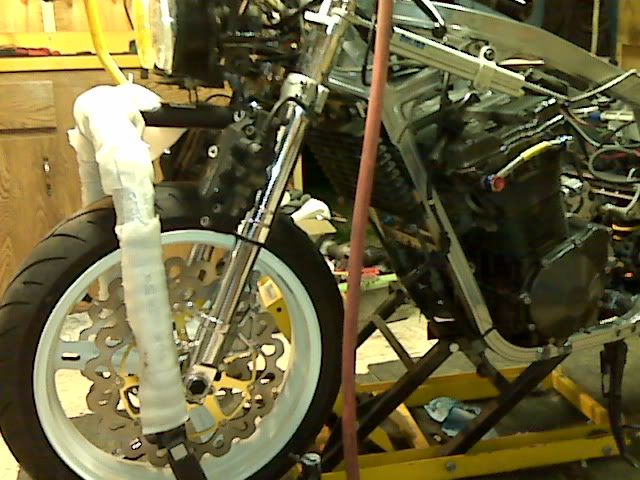

Then the forks came back, cleaned em up and installed front end, Ohlins damper, engine and made a 6061 billet bracket to adapt B-12 oil cooler to fit my 86 frame.

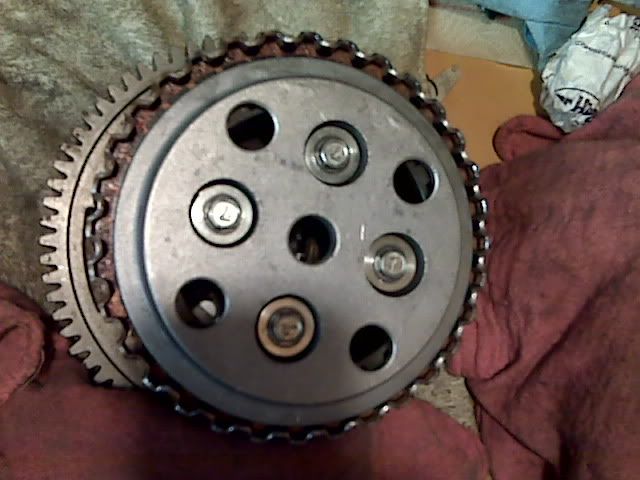

I also built a custom 4 spring HD clutch for it out of various year gsxr parts.
Stock;

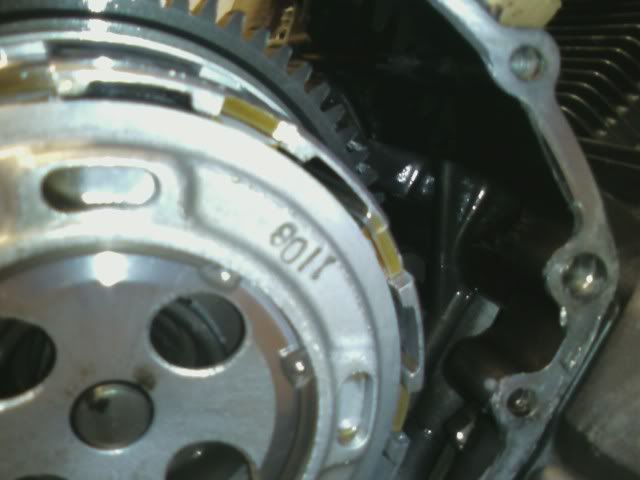

MINE:

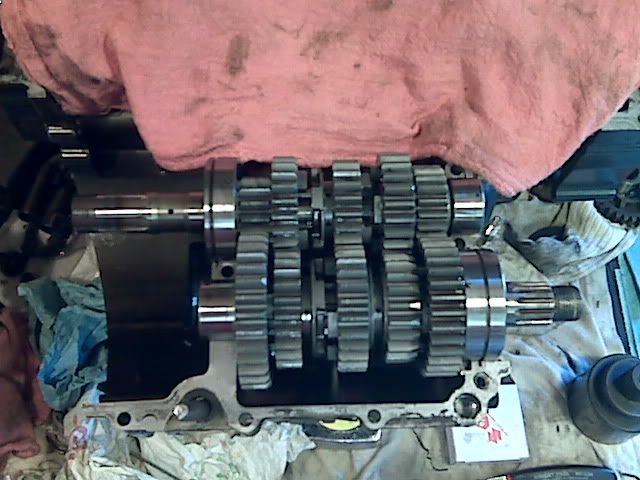

 The trans gears are all double undercut and dry moly impregnated. It has ceramic double row bearings and hardened input and output shafts in it also

« Last Edit: January 29, 2011, 12:52:38 am by gotgixers »
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #18 on: January 29, 2011, 12:56:43 am »
Then it got put together for trial runs...




looks crazy huh!! I need it together to get it running and shake it down a bit...
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #19 on: January 29, 2011, 12:59:46 am »
So i ride it like that for about 2 wks, get a couple little issues worked out and decide to rattle can it...


« Last Edit: January 30, 2011, 10:01:46 am by gotgixers »
I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #20 on: January 29, 2011, 01:08:49 am »
I rode it like that for about a year. Then finally decide to break down and do a full repaint with OEM decals and all...You cant imagine what this cost to paint and decal ...
heres the paint progress. I helped my painter throughout the entire process. I actually did the decals at his shop myself..
He based in white...

Then we started laying the stripes in...




Then we went to the lower and mids...



I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #21 on: January 29, 2011, 01:16:38 am »


Then on to the upper fairing...

Then we finally finished it up, I still needed a mid pipe made at this point...


I PITY THE FOOL, THAT DONT RIDE OLDSCHOOL


Offline gotgixers

  • Gixxersaurous rider
  • Legendary Member
  • *****
  • Posts: 3321
  • Old Skool GSXR 7/12
Re: gotgixers '86 GSXR rebuild?modification
« Reply #22 on: January 29, 2011, 01:26:42 am »
the actual build was alot more detailed than this post describes. With a years worth of R&D to design, make and fit all the custom stuff. And keep it looking somewhat stock. I just hit on the highlights and tried to keep it short for yall.

As the bike sits now it weighs in at 474lbs WET. Has 152rwhp and 92 ft lb torque(with the stg 1 cams and 36mm carbs)
If you any Q's just ask.....
