Author Topic: Clutch replacement on 04 z1000  (Read 4569 times)

Offline emd513

  • speed is an obsession. not a decision.
  • Legendary Member
  • *****
  • Posts: 2575
  • "adrenaline junkie"
Clutch replacement on 04 z1000
« on: July 22, 2013, 07:15:57 pm »
Alright guys I decided since there are a few of us that have z's I would make a post on the replacement of the clutch. This is how I am doing it with some pointers on which and what clutch to use from our buddy Curtie.

Tools: 8mm socket and extension (1/4 or 3/8 drive. I used 1/4) 5mm Allen socket or wrench which ever you have. 17mm wrench for drain plug. Small flat head screw driver, Towel, rags what ever you use to clean with and something to keep the parts off dirty surfaces. oh and a cleaner I prefer using wd-40  over brake cleaner or carb cleaner unless its pretty nasty.

I didn't take a pic of removing the cover, because if you cant figure out how to take the 8mm bolts out you shouldn't be doing this.:-D

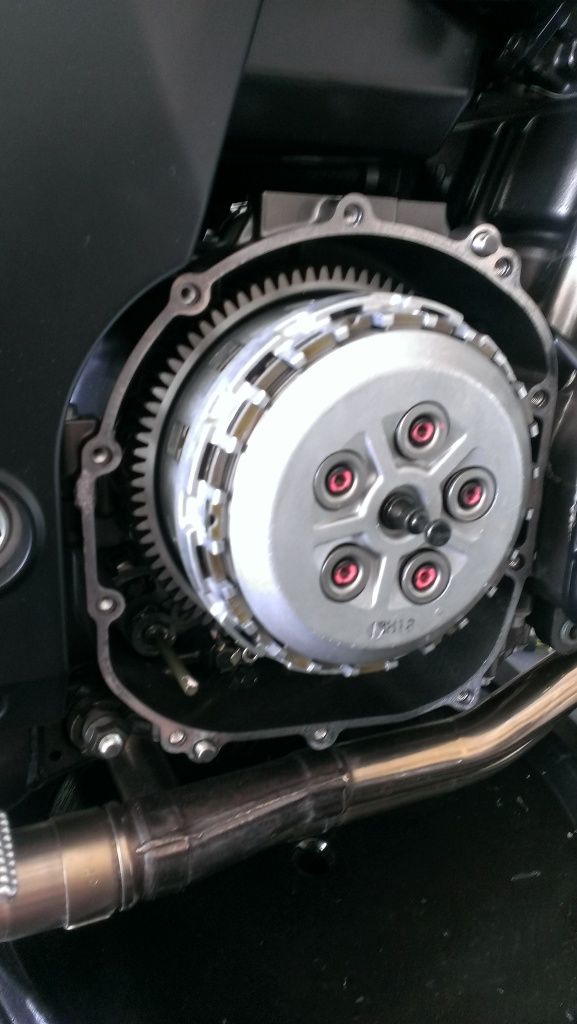

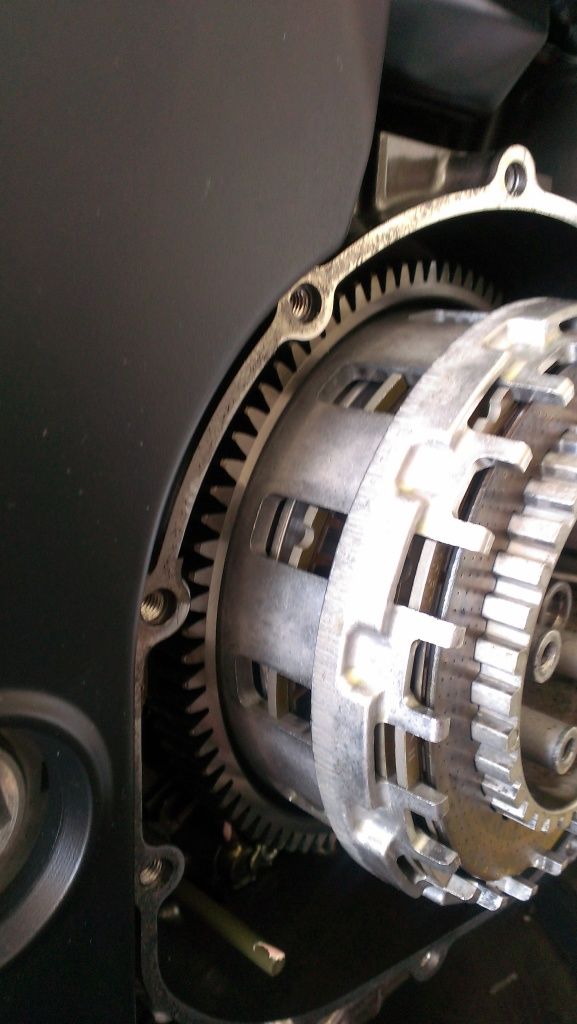

You will have to spin the clutch rod almost 180 degrees to disconnect it to get the cover off. Don't pry or man handle it either. this is now what you should see. if yours is dirty you need to learn how to change your oil. Lol

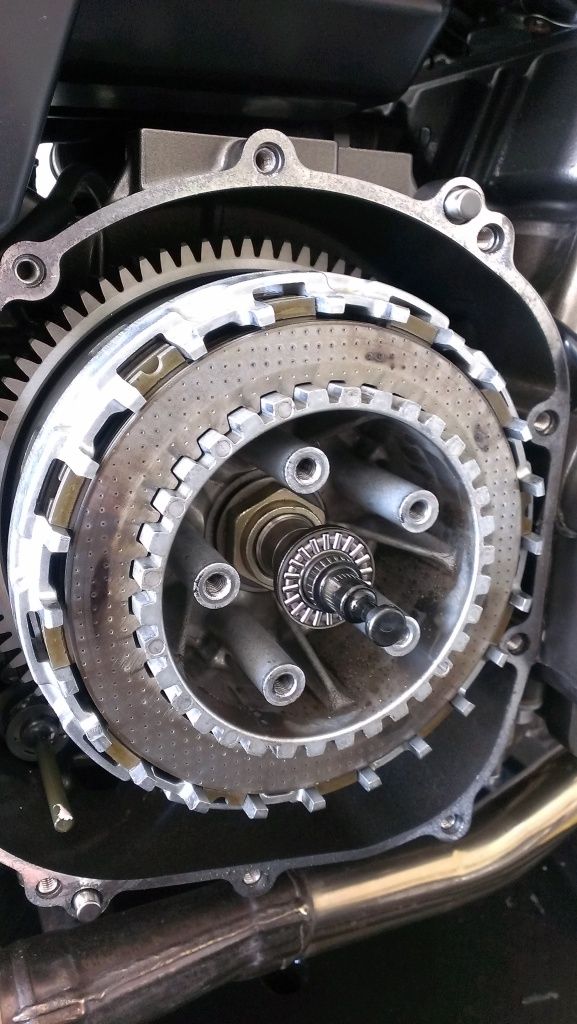

take your 5mm Allen an break each bolt loose. I like to take them out in a star pattern just to make sure it doesnt do any warping to the cover.my clutch was slipping in high rpms as you can see the burn marks. :( the black shaft piece you can now pull out, carefully do it so you don't drop it and knock out any of the bears in there plate, clean it as well.

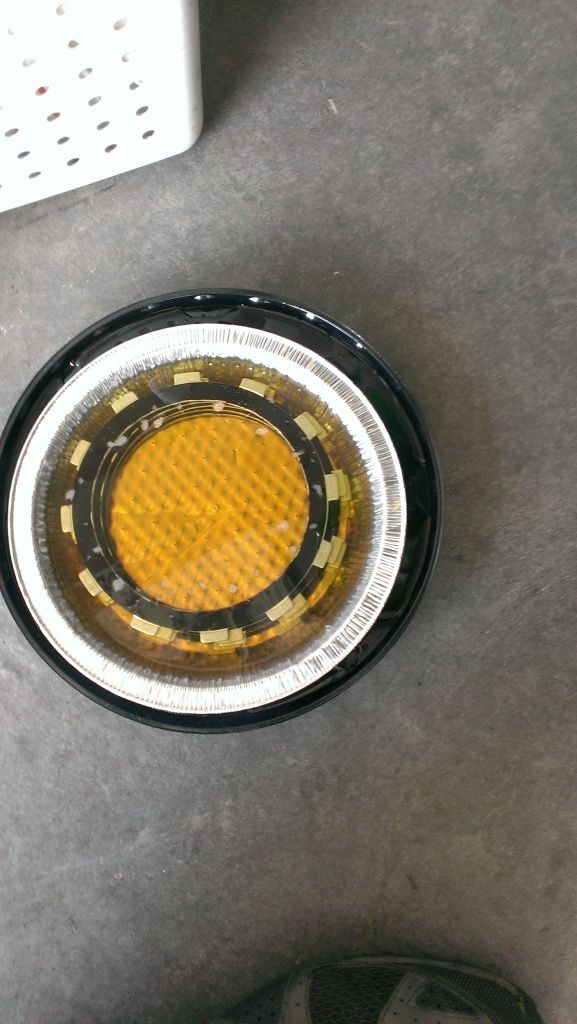

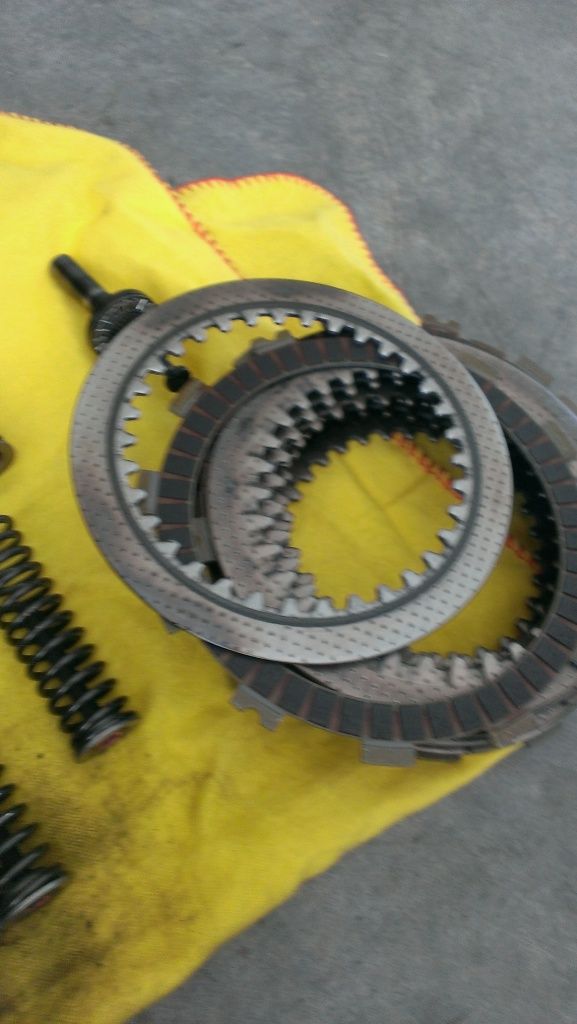

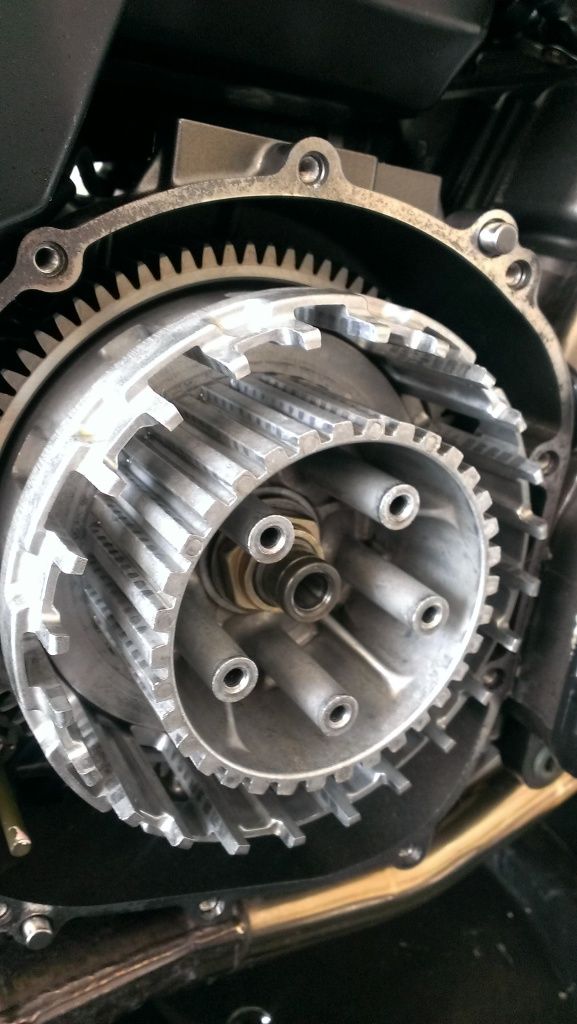

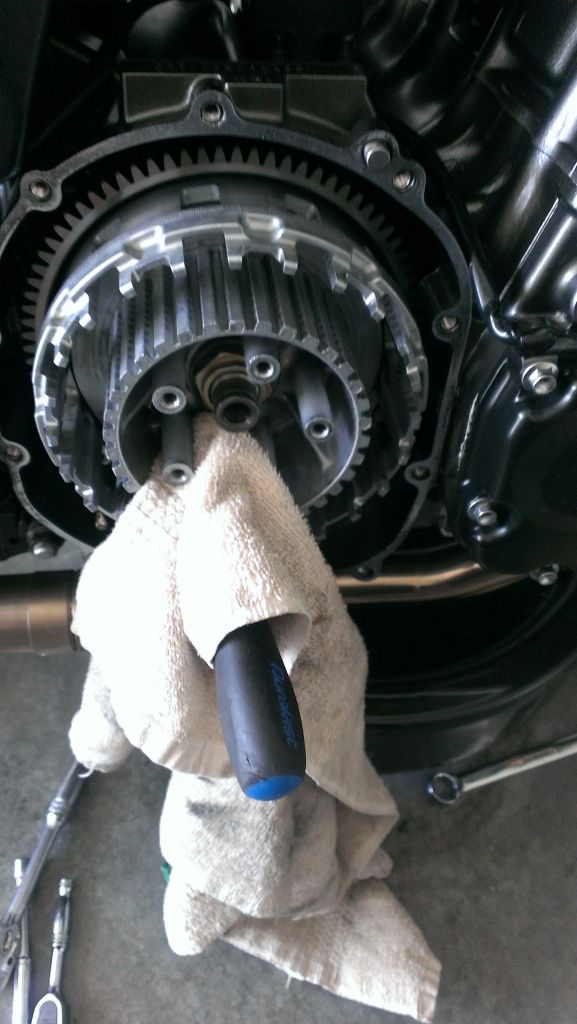

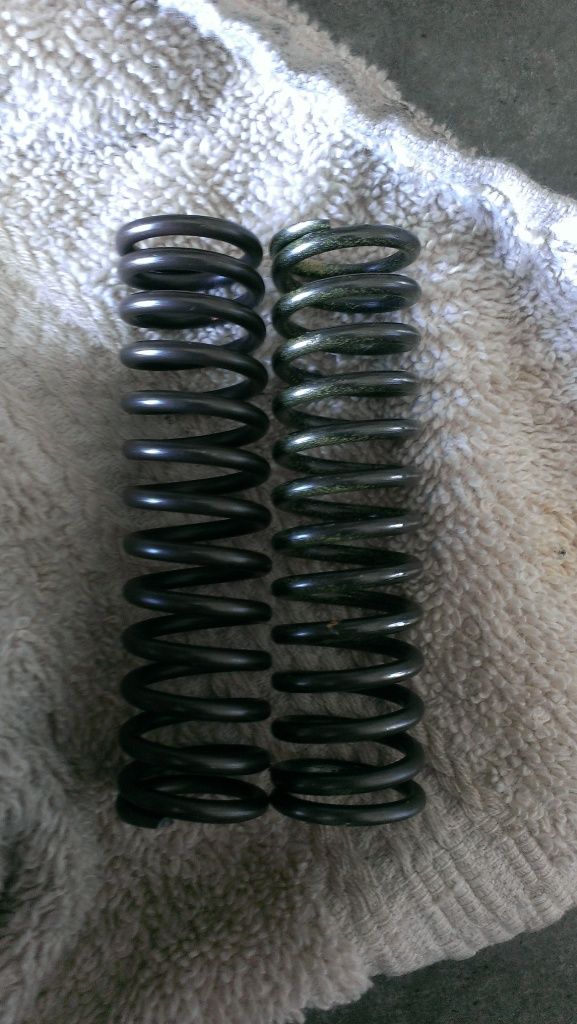

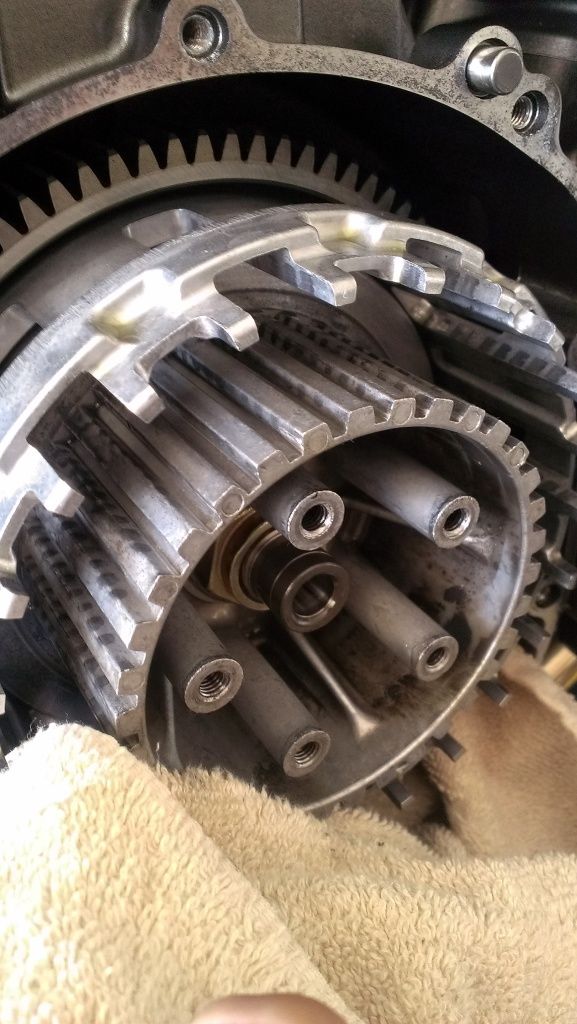

Pull each disc out, this is where the small screw driver will help get to the ones towards the back in the casing, don't pry just use it to help slide them towards the front. You don't want to do any damage to the casing.I laid them all out as they were in the motor. now I advise you to clean up the left over crap from the slipping clutch as well. Last thing you want is that stuff getting into your new set and screwing something up. I used the wd-40 to soak it down, leave a towel under it to help catch junk that falls out, don't want that in the motor. after it sits for a min I take the towel,rag and wipe everything down, use the screw driver in the towel to get to the little spots that my hand can't reach. now its cleanI like to just in case I didn't get all the junk out, spray it down again and sope up the liquid u also lean the bike over and spray to help. Now you can start the rebuilding process. My springs were my issue so news go on.looks like the previous owner replaced the clutch but never the springs. not a good idea guys. while your in there go ahead and do it. will save you a headache later.almost forgot, there's two band on the back side of the clutches ( top left) take those out and wipe them down. Not sure if they have a particular spot of the two that go first so I just made sure the back went back to the back.lol talking to curt I decided to get the barnetts kit, 50/50 reviews but most are from idiots bot liking how it grabs or didn't want to take there time with install. Barnetts kit had a piece of paper that says soak clutch disc for five to ten min. Now I talked to curt about this, I've always heard over night so that's what I'm going to do as sugar nipples thinks that's good to. Remeber these things sit in oil the whole time there in the motor so it will not hurt you to wait a little or if you prefer soak them prior to pulling the old out. Either way you want to do it.also use the oil you plan on running to do this. This is the point I'm at. going to wait till tomorrow to put back together, will post steps of it once I'm done.
